NON-CONTACT TYPE MAGNETOSTRICTIVE POSITION SENSING

GermanJet specializes in position measurement solutions for plastic and rubber, equipment manufacturing, food and beverages, metal and woodworking, and automotive industries. GermanJet’s complete sensing solutions help customers from all the industries achieve a decisive competitive edge. GermanJet offers a complete sensing solution from one source, needing no unnecessary interfaces, maximum flexibility, resulting in highest level of profitability.

NON-CONTACT TYPE MAGNETOSTRICTIVE POSITION SENSING

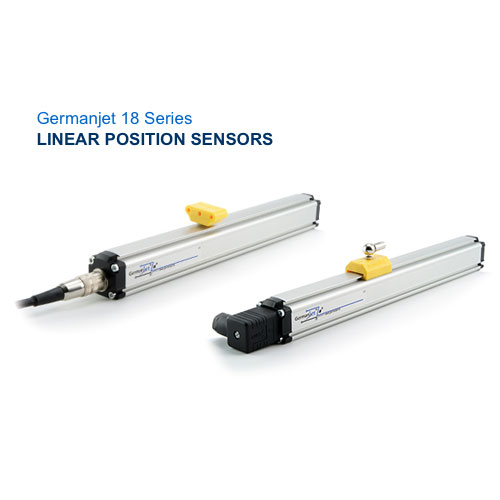

Germanjet 18 Series - LINEAR POSITION SENSORS

The 18 series non-contact absolute position transducer adopts the non-contact magnetostricitve measuring technology for precise, direct and absolute measurement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non-contact (Floating) cursor provides exceptional ease of installation with a variety of available cursor position target.

The high versatile profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment.

Download – Data Sheet

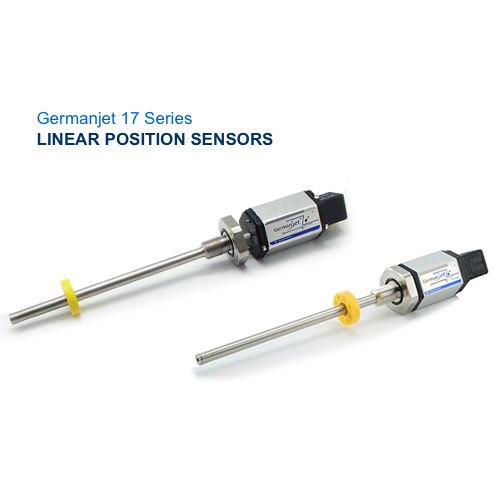

Germanjet 17 Series - LINEAR POSITION SENSORS

The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily. In some instance, if the transducer needs to be re-calibrated, the hydraulic body no need to be detached from the hydraulic cylinder. This modular design can greatly reduce the cylinder reset time and improve efficiency.

The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector (DIN 43650) is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.

Download – Data Sheet

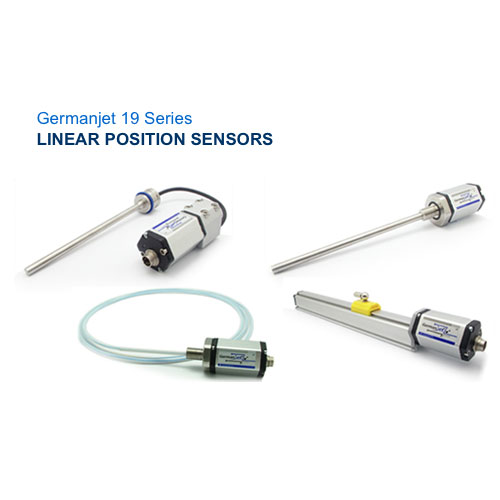

Germanjet 19 Series - LINEAR POSITION SENSORS

The 19 series non-contact absolute position transducer is specially designed for use in many harsh process applications such as refining, petrochemicals, power generation, and even pharmaceuticals. Beside available for basic analog output, it coexists alongside with other communication interface such as CANBus, Profibus, SSI, and Start / Stop.

The transducer is available in hydraulic rod style, aluminium profile, and detachable model. All models rated for IP67 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector is common for field connection.

Download – Data Sheet

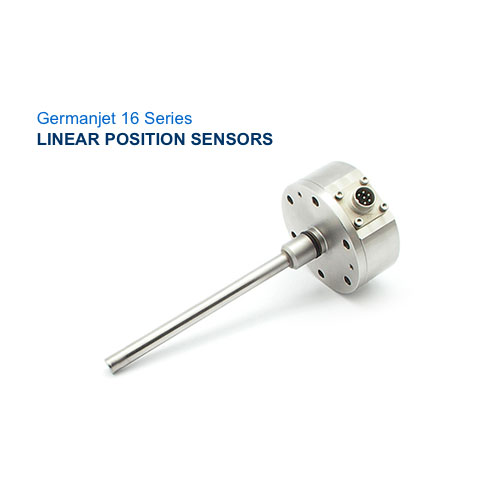

Germanjet 16 Series - LINEAR POSITION SENSORS

16 series is design for hydraulic cyclinder with limited head space or clevis rod ends hydraulic cyclinder. Sensing rod is made by stainless steel which installed inside the hydraulic cyclinder. It has a wide variety of signal output selection included analog voltage, current, and SSI. It is a perfect combination with hydraulic valve to form a close-loop servo hydraulic system.

It adopts the non-contact magnetostrictive to provide feedback of fluid level and multi-interface level of a storage tank or process vessel. The non-contact feature provides exceptional ease of installation and guaratees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.

Download – Data Sheet

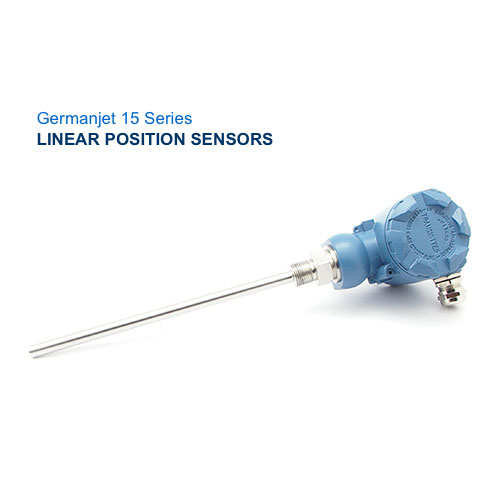

Germanjet 15 Series - LINEAR POSITION SENSORS

15 series is the safe and reliable approach to level application in hazardous loaction. It is designed according to the explosion protection regulation (GB3836. 1-2000, Electrical Apparatus for Explosive Gas Atmospheres Part1: General Requirement; GB3836-2-2000, Electrical apparatus for Explosive Gas Atmospheres Parts2: Flameproof enclosure "d")

It adopts the non-contact magnetostrictive to provide feedback of fluid level and multi-interface level of a storage tank or process vessel. The non-contact feature provides exceptional ease of installation and guaratees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.

Download – Data Sheet

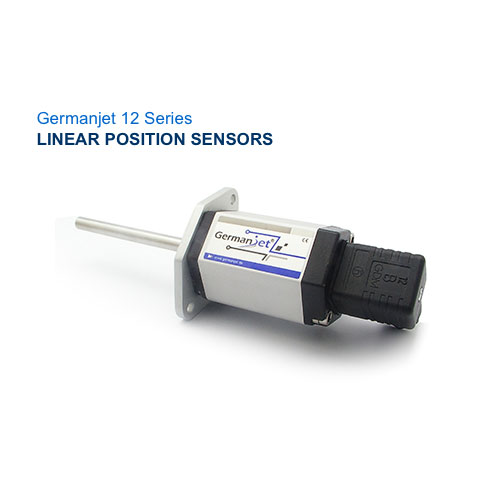

Germanjet 12 Series - LINEAR POSITION SENSORS

Parisan control is an advance close-loop system for blow molding machine. The 12 series non-contact absolute position transducer is specially designed for parison control. It provides feedback of the valve position to controller to precisely control the thickness of the bottle.

The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy. Electronic component and body are modular design which can be detached easily to be re-calibrated. The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.

Download – Data Sheet
